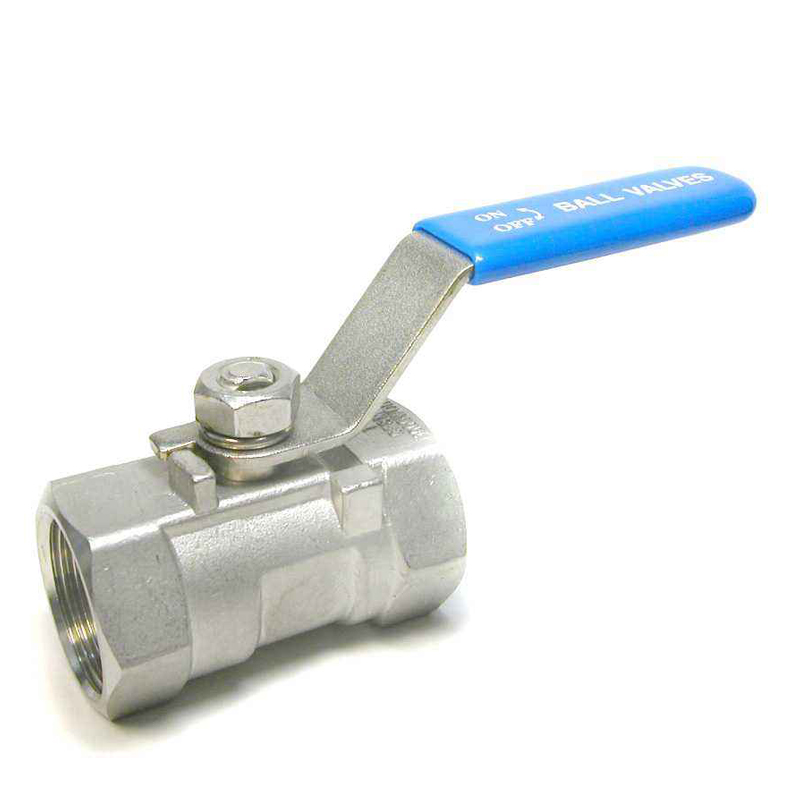

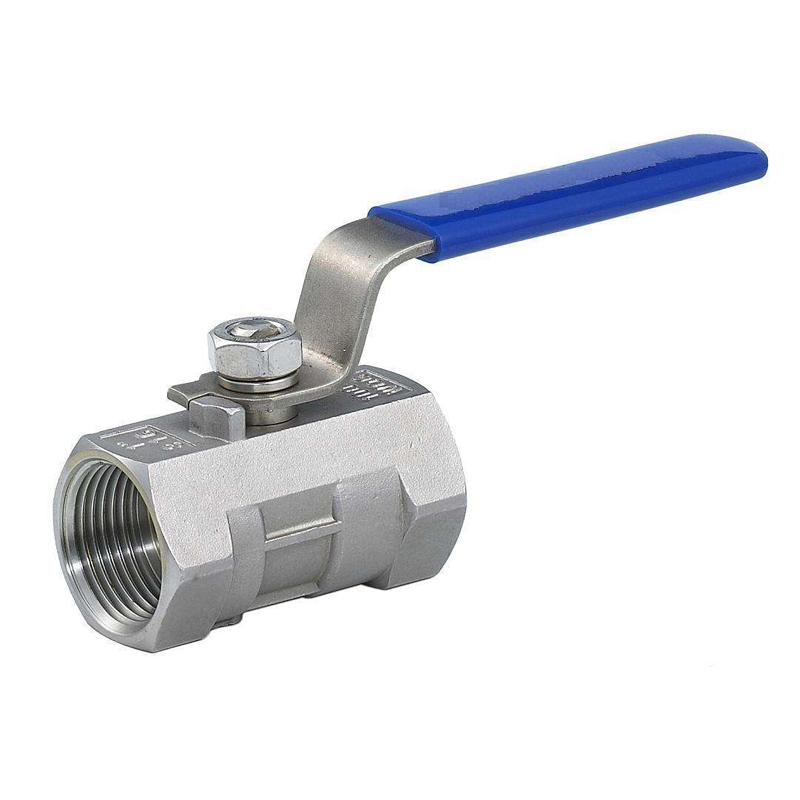

30.One piece screwed 100 psi ball Valve

One piece screwedball Valve

Size Range: 1/4~4"

Pressure: 1000PSI

Body Materials: SS201, SS304, SS316, WCB

Ball Materials: SS304, SS316

Seat Materials: PTFE

End Connection: Threaded NPT or BSP

AdoptiveStandards:

Valve Design: ASME B16.34, GB/T12237

Pressure Test: API 598 , JB/T9092

Thread standard: NPT, BSP

Standard Test:

Body Test: 1.5times the working pressure with water. This test is performed after valveassembly and with disc in half position open, it is called as a body hydrotest.

Seat Test:1.1 times the working pressure with water.

Function /Operation Test: At the time of final inspection, each valveand its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes acomplete operating test (Open/Close). This test carried out without pressureand at ambient temperature. It ensures the correct operation of the valve /actuator assembly with accessories such as solenoid valve, limit switches, airfilter regulator etc.

Special Test: Onrequest, any other test can be carried out according to special instruction byclient.

Application :

•      WaterTreatment Plant                  •   Drilling Rigs

•      PaperIndustry                         •   Gas Plant

•      SugarIndustry                         •   Cooling Water Circulation

•      Breweries                             •   Heating & Air Conditioning

•      ChemicalIndustry                      •   Pneumatic Conveyors

•      WasteEffluent Treatment Plant             •   CompressedAir
