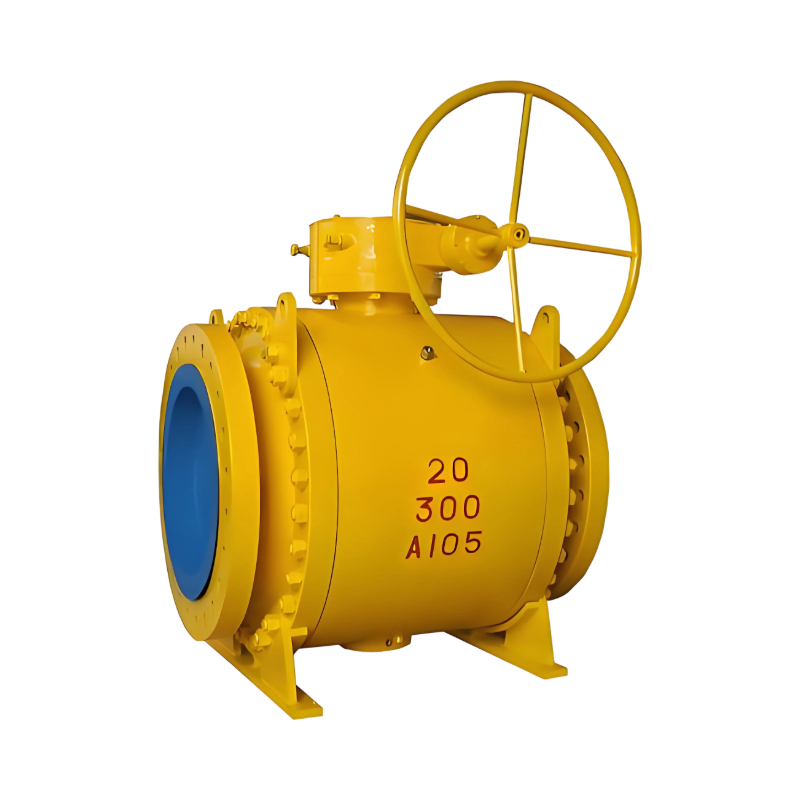

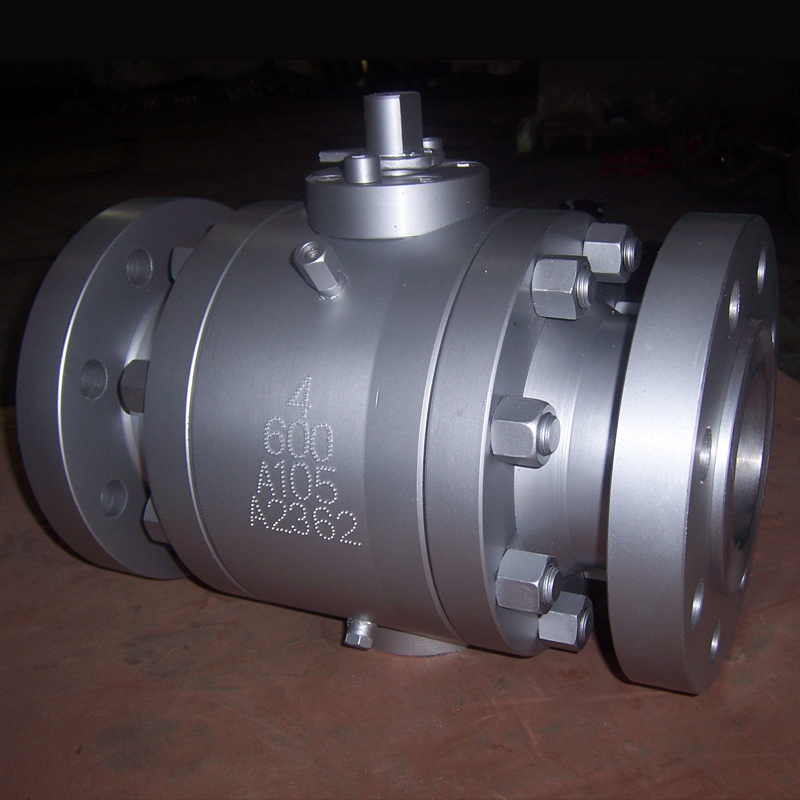

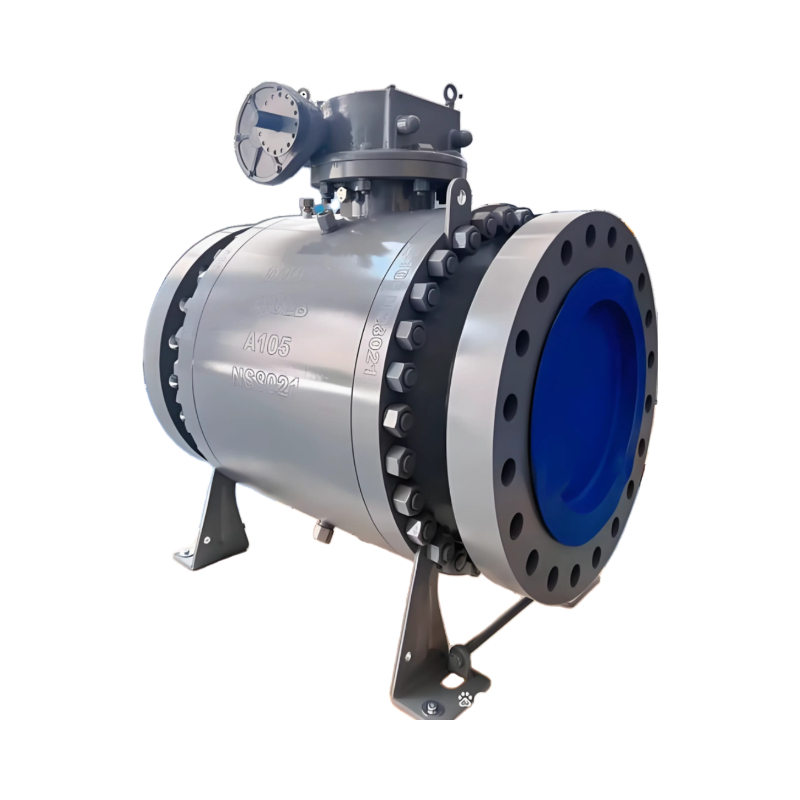

10. Three PC body Metal Seated Forged Trunnion Ball Valve

Basic Info.（Chemical valve）

Model NO.

Q347F

Structure

Fixed Ball Valve

Type

Fixed Ball Valve

Function

Blow-Down Valve, Relief Valve, Atmospheric Valve,Bypass-Valve

Temperature

Normal Temperature

Application

Industrial Usage

Connection

Flanged/Bw

Medium

Water, Steam, Oil., etc

Model No

Q347y/Q347tc

Body Design

3PCS Forged Type

Body Feature 2

Fire Safe, Anti-Static, Anti-Blow out Stem

Flow Port

Reduced Port / Full Port

Seat Material

Stellite Overlayed, Nickle Plated, Tunsten Carbide

Transport Package

Plywood Case

Trademark

JIAZHIHE, OEM

Origin

China(Mainland)

HS Code

8481804090

Production Capacity

8000PCS/Year

ProductDescription

150lb/300lb/600lb/900lb/1500lb/2500lb High Pressure Forged Metal SeatedTrunnion Ball Valve

Cast steel 3PC trunnion ball valve have two piece and three piece bodystructure.middle part is bolt connection, RPTFE seal insert into stainlesssteel ring with spring .keep good sealling .
Top stem withbottom stem have PTFE bearing ,reduce friction, save effort. full bore andreduce bore .
Large size ,high pressure can suit for industrial pipeline service.
Avaiable with BGoperator.

Application

Application:

Size: from 4" ~ 48"
Pressure: from 150Lb ~ 2500Lb
Working temperature: from -50 Deg. C ~ 550 Deg. C

Specification

Specification:

Design & Manufacture according to :API 6D
Face to Face according to : ASME B16.10
Flange Dimensions according to : ASME B16.5
Pressure & Temperature according to : ASME B16.34
Test & Inspection according to : API 6D / API 598
Visual Inspection according to : MSS SP-55
Marking according to : MSS SP-25
