11. V Type Ball Valve
Basic Info.
Model NO.
Q670F
Structure
Fixed Ball Valve
Type
Fixed Ball Valve
Function
Bypass-Valve
Temperature
-40°c~300°c
Standard
ANSI; JIS; DIN
Application
Industrial Usage
Rotary Angle
90 Deg C
Service
JIAZHIHE /OEM
Certification
Ce, ISO9001, Atex, API
Transport Package
Wooden Package
Specification
DN25-500mm
Trademark
JIAZHIHE
Origin
Shanghai, China
HS Code
8481804090
Basic Info.（Chemical valve）
Model NO.
Q670F
Structure
Fixed Ball Valve
Type
Fixed Ball Valve
Function
Bypass-Valve
Temperature
-40°c~300°c
Standard
ANSI; JIS; DIN
Application
Industrial Usage
Rotary Angle
90 Deg C
Service
JIAZHIHE /OEM
Certification
Ce, ISO9001, Atex, API
Transport Package
Wooden Package
Specification
DN25-500mm
Trademark
JIAZHIHE
Origin
Shanghai, China
HS Code
8481804090
ProductDescription

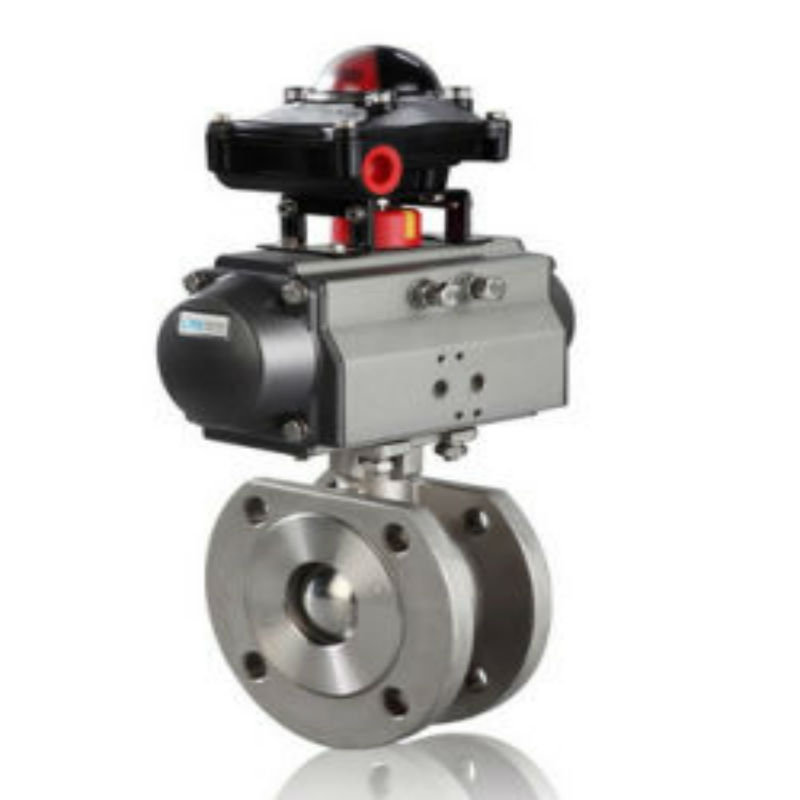

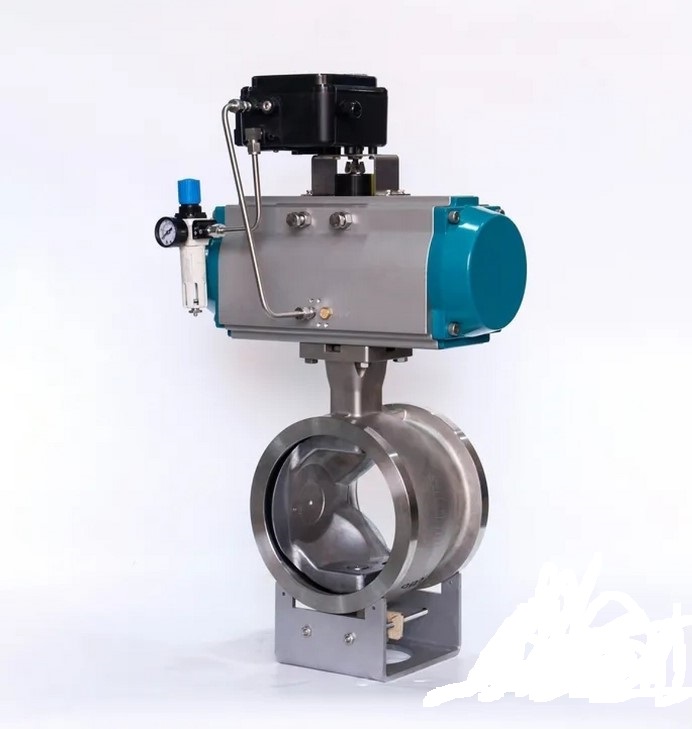

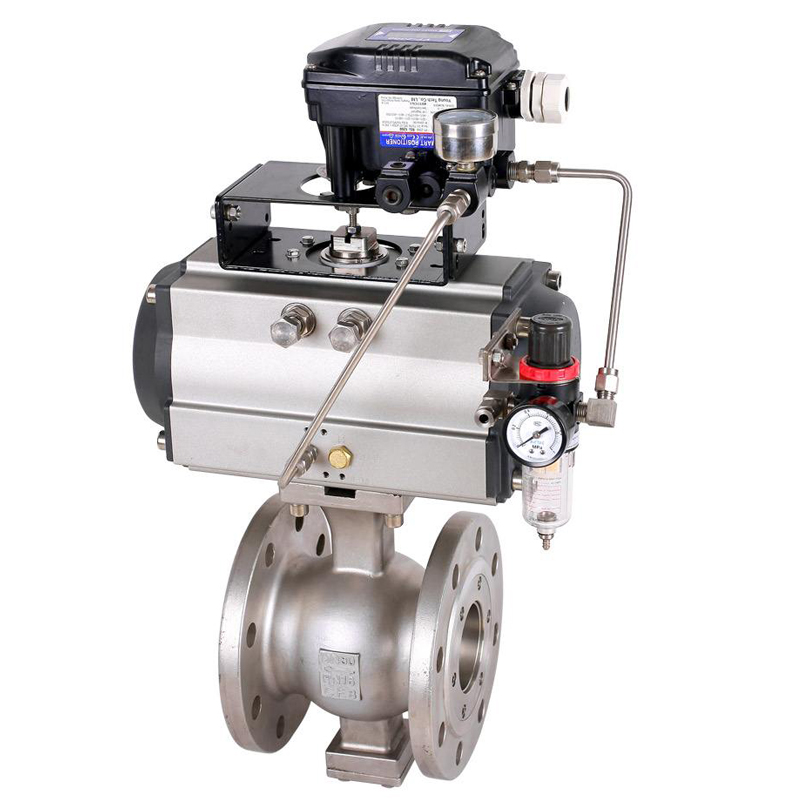

Pneumatic Actuated Wafer V Port Stainless Steel CF8 CF8M WCB Ball Valve
Summary:
Q670F pneumatic ball valve is a pneumatic ball valve series of products.It is a new generation of ultra-thin flange distance ball valve developed byour company by introducing Italian technology and carrying out domestic design.The core channel is v-shaped. Pneumatic sandwich ball valve has thecharacteristics of compact structure, small volume and light weight.
Specification of Pneumatic Wafer V-type Ball Valve | |
Model | Q670F(P,H,V ) |
Nominal Diameter | DN25-500mm |
Pressure | 1.6;2.5;4.0;6.4MPa; 150Lb;300Lb;600Lb |
Structure | V-type Port Fixed Ball Valve |
Design Standard | ANSI; JIS; GB; DIN |
Body Material | WCB; CF8; CF8M; CF3; CF3M |
Seat Material | PTFE; PPL; H.Y |
Action Manner | Double acting; Single acting |
Control Type | On-off Type; Adjust type |
Accessories | Limit Switch; Solenoid Valve; Positioner; F.R.L |
Technique Norm | ||
Design Basis | GB Standard | ANSI Standard |
Design Standard | GB/12237 | ANSI B16.34 |
Connection Flange Size | GB/9113 JB/T79 | ANSI B16.5 |
Test & Inspection | JB/T9092 | API 598 |
