8. 3-way Ball Valve
1. Floating ball, full bore or reduce bore.
2. ISO5211 mounting pad for easy automation.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
Technical Specification:
1. Design & Manufacture standard: API 6D, API 608, BS 5351.
2. Pressure & Temperature standard: ASME B16.34.
3. Face to face dimension standard: ASME B16.10.
4. Flange standard: ASME B16.5, ASME B16.47.
5. Test & Inspect standard: API 598, API 6D.
Product Description

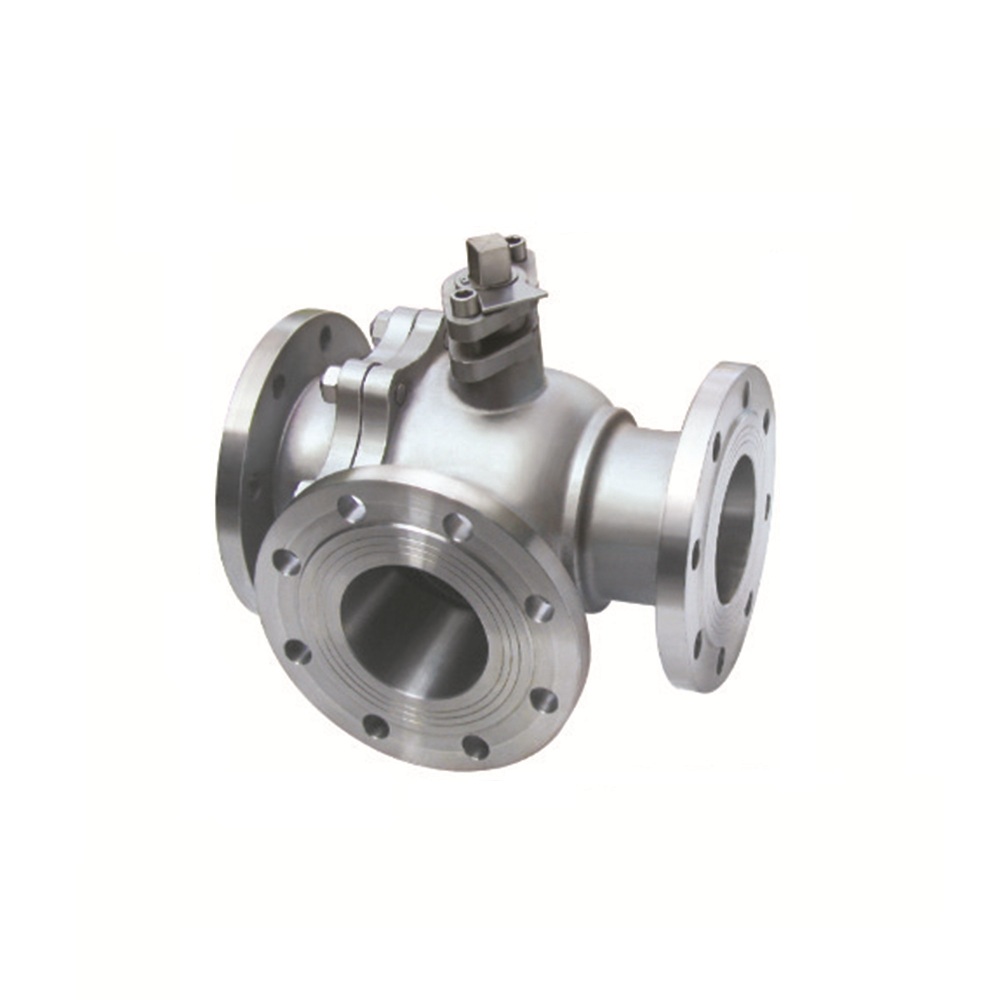

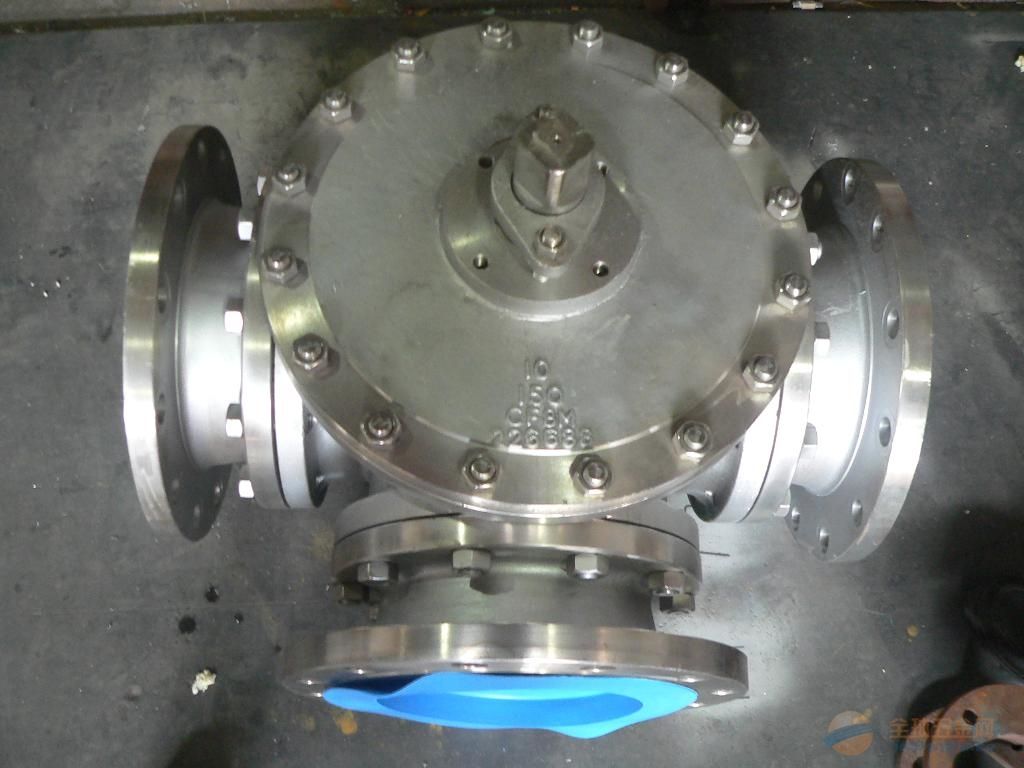

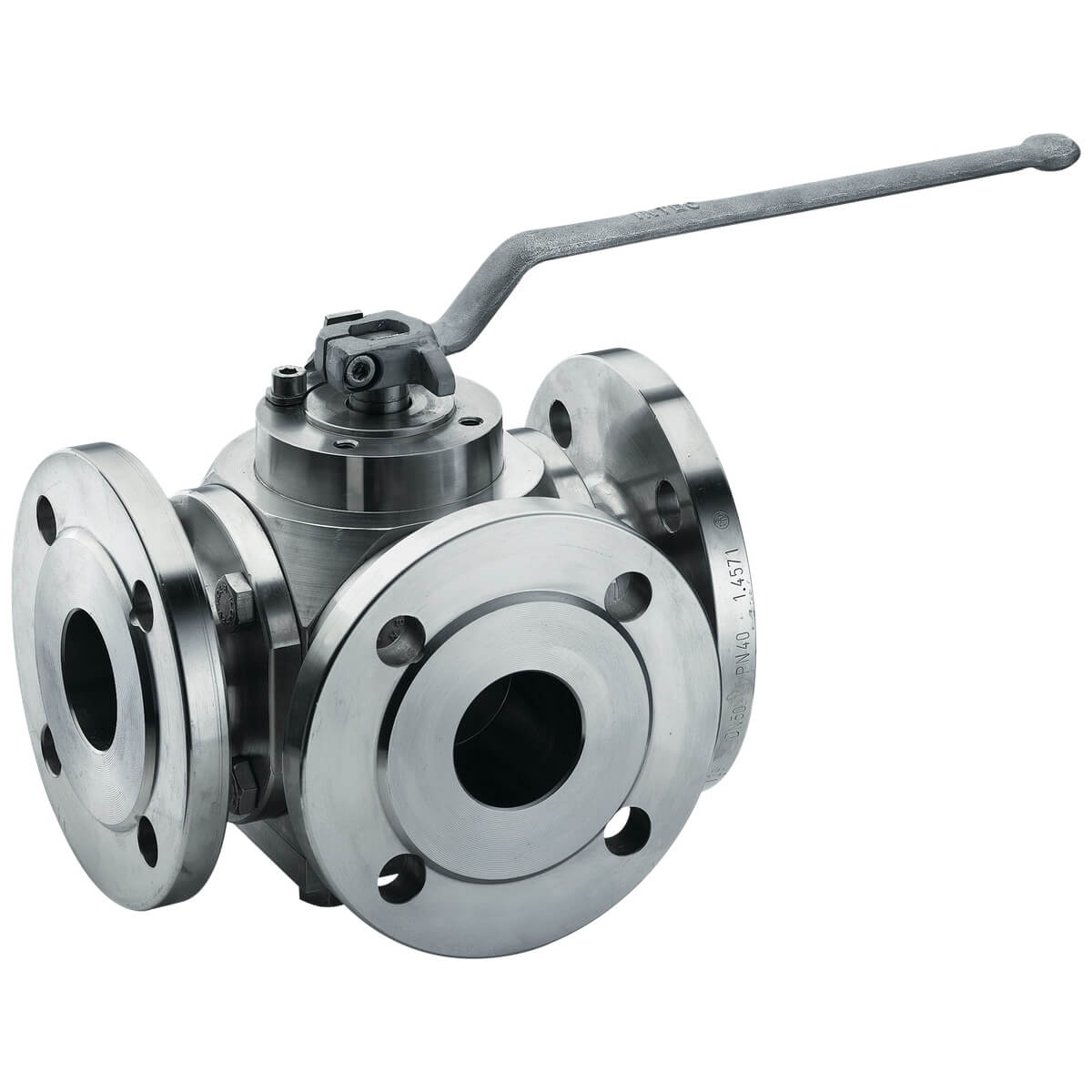

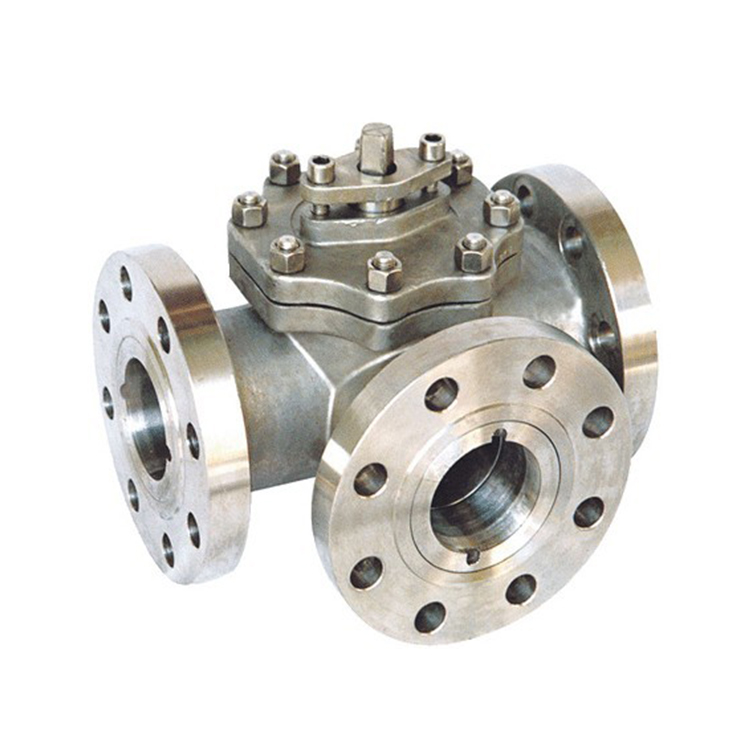

3way Flange Stainless Steel API Ball Valve with ISO5211 Mounting Pad Product Feature:
1. Floating ball, full bore or reduce bore.
2. ISO5211 mounting pad for easy automation.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
Technical Specification:
1. Design & Manufacture standard: API 6D, API 608, BS 5351.
2. Pressure & Temperature standard: ASME B16.34.
3. Face to face dimension standard: ASME B16.10.
4. Flange standard: ASME B16.5, ASME B16.47.
5. Test & Inspect standard: API 598, API 6D.
| Product Name | 3 way Stainless Steel Flange Ball Valve 150LB 300LB 600LB |
| 1. Material | A351 CF8M/CF8/CF3, A216 WCB, A352 LCB/LCC/SUS2205 |
| 2. Size | 1/2''~12' ( DN15~DN300) |
| 3. Certificate | ISO9001 & CE,API |
| 4. Port | Full Port |
| 5. Working Pressure | 150LB~600LB |
| 6. Connection Ends | Flange(RF/RTJ) |
| 7. Working Temp. | -196ºC~450ºC |
| 8. Suitable Medium | Water, Steam, Oil and natural gas etc. |
| 9. Seal | PTFE, RPTFE, PPL |
| 10. Locking | Option |
| 11. Inspection & Testing | According to API598 |
| Shipment | |
| Delivery Time | 15~30 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | EXW, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping or against copy of BL | |
| Warranty | 24 Months after leaving factory |
| Advantage | OEM/ODM is applicable |
| Others | We also manufacture Flange Ball Valve, Gate Valve, Globe Valve, Check Valve, Butterfly Valve & Y Strainer |
