5.Three pc Forged Steel Floating Ball Valve

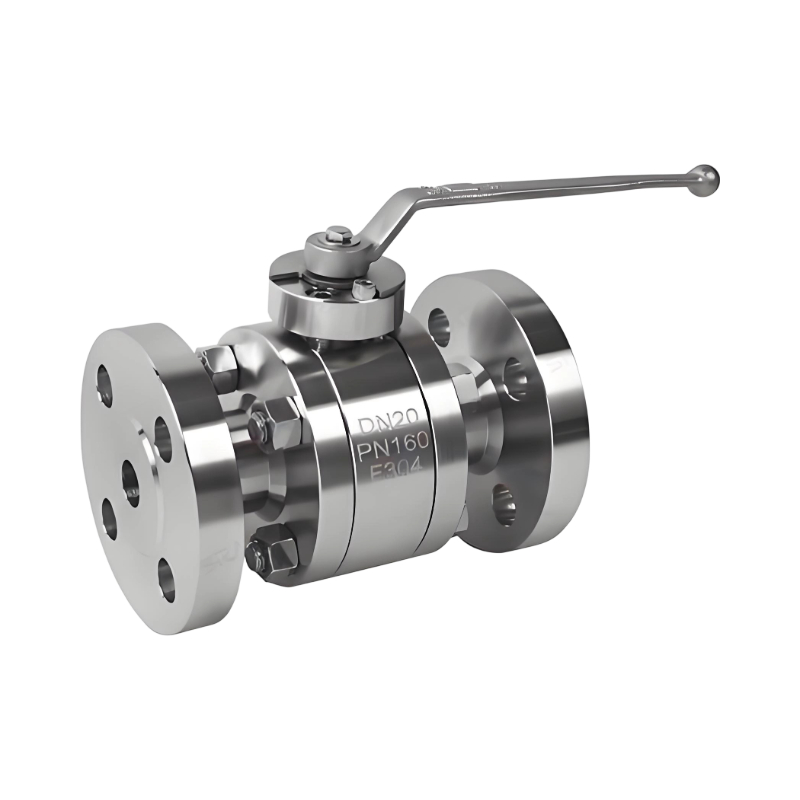

900#High Pressure Stainless Steel&Forged Steel Floating Flanged BallValve （Chemical valve）

1.900#High Pressure Stainless Steel&Forged Steel Floating Flanged BallValve Product Specification:

1. Size:     1/2''-10''(DN15~DN250)

2. Pressure Rating: 150LB-600LB/PN16~PN100/10K~60K)

3. Material: A351     CF8M/CF8/CF3, A216 WCB, A352 LCB/LCC

4. Suitable     Temperature: -196ºC~450ºC( Different temperature choose different     materials).

5. Suitable Medium: Water,     Steam, Oil and natural gas etc.

2.High pressure 900# forged stainless steel RTJ flanged type F316 floatingball valve with handle operation Technical Specification:

1. Design & Manufacture     standard: API 6D, API 608, BS 5351/DIN3357/JIS B2071

2. Pressure &     Temperature standard: ASME B16.34/DIN3230

3. Face to face dimension     standard: ASME B16.10/DIN3202/JIS B2002

4. Flange standard: ASME     B16.5, ASME B16.47/DIN2543-2545-2501/JIS B2220

5. Test & Inspect     standard: API 598, API 6D/DIN2401/JIS B2003.

3.High pressure 900# forged stainless steel RTJ flanged type F316 floatingball valve with handle operation   Product Feature:

1. Floating ball, full bore     or reduce bore.

2. ISO5211 mounting pad for     option.

3. Blow-out     proof stem design.

4. PTFE/RPTFE seat seal(     Seat seal material could be decided by customer's request or according to     valve's medium & temp. condition).

5. Anti-static design and     API 607 Fire Safe Design available

6. Operation: Hand     wheel, Worm wheel, Pneumatic actuator & Electric Actuator.

Note: All the data should be confirmed with theapproved drawings of manufacturer.
